*CTT FY 99M 1 AUGUST 1998
MANUAL
FOR THE ADMINISTRATION
OF THE FY 99
COMMON TASK TEST
(CTT)
TEST PERIOD
Active Army and Reserve Components:
October 1998 through September 1999
*This publication superseded CTT FY 98M, 1 August 1997
*CTT FY 99M
1 August 1998
MANUAL
FOR THE ADMINISTRATION
OF THE FY 99
COMMON TASK TEST
(CTT)
TEST PERIOD: Active Army and Reserve Components:
October 1998 through September 1999
*This publication supersedes CTT FY 98M, 1 August 1997.
SPECIAL NOTICE FOR COMMANDERS AND TRAINERS:
For the first time, beginning in FY 00, 1 Oct 99 through 30 Sep 00, the CTT will be administered without the publication of paper based copies of the CTT Notice and the CTT Administration Manual. The Soldier's Manuals of Common Tasks task summaries supporting the FY 00 CTT training and evaluation, as well as the CTT Notice and CTT Administration Manual, will all be available on the Internet for your viewing and for downloading. This year, CTT FY 99, will preview this capability. In addition to the paper copies of the CTT Notice and the CTT Administration Manual being mailed to your unit, you can find these documents on the Internet at the Army Doctrine and Training Digital Library, which will be located on the internet at the ADTDL Homepage, http://www.atsc-army.org/atdls.html. Scroll Documents and select Common Task Test.
NOTICE FOR COMMANDERS AND TRAINERS:
The following CTT Task is new or has doctrinal changes. The task summaries are included at the beginning of the task to be evaluated:
031-503-1017 Respond to Depleted Uranium/Low level Radioactive Materials (DULLRAM) Hazards (new)
154-385-6263 Conduct a Risk Assessment (new)
551-88N-0002 Prepare for Unit Movement (new)

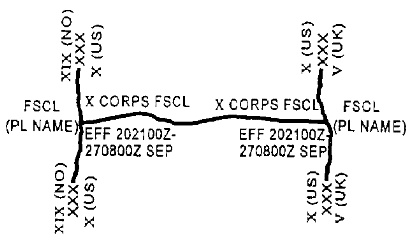

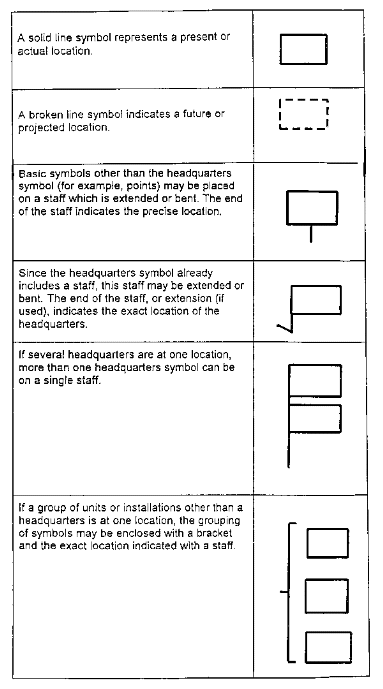

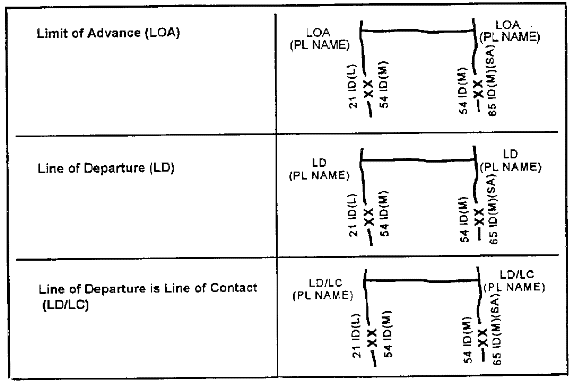

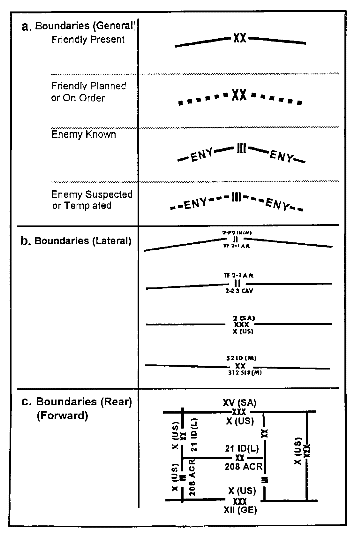

071-332-5000 Prepare An Operation Overlay (doctrinal changes)
HQ TRADOC is in the process of a Common Core Revision action, which will impact all common core tasks at all levels. Some task are being consolidated, others deleted, and a few added. Until the new tasks are published use the current task(s) as listed below.
031-503-1013 (SL1) Decontaminate Yourself and
Individual Equipment Using Chemical Decontamination Kits
REPLACED STP 21-1-SMCT, OCT 94: O31-503-1007, O31-503-1033,
O31-503-1034.
031-503-1035 (SL1) Protect Yourself From
Chemical/Biological Contamination Using Your Assigned Protective
Mask
REPLACED STP 21-1-SMCT, OCT 94: O31-503-1004, O31-503-1012,
O31-503-1025, 031-503-1028.
071-990-0002 (SL1) Operate An M16A1/M16A2 Rifle
REPLACED STP 21-1-SMCT, OCT 94: 071-311-2004, 071-311-2007,
071-311-2026, 071-311-2027, 071-311-2028, 071-311-2029,
071-311-2030.
031-503-1036 (SL1) Maintain Your Assigned
Protective Mask
REPLACED STP 21-1-SMCT, OCT 94: O31-503-1005, O31-503-1011,
O31-503-1024, O31-503-1026.
113-305-1001 (SL1) Communicate By a Tactical
Radio
REPLACED STP 21-1-SMCT, OCT 94: 113-571-1022
071-326-5505 (SL2) Issue an Oral Operation
Order
REPLACED STP 24-SMCT, OCT 92: 071-326-5626 (SL 4), 071-326-5775
(SL 4).
SECTION I - OVERVIEW
1. Applicability. This manual applies to the
Active Army, Army Reserve, and Army National Guard.
2. Scope of manual. This manual:
a. Explains how tasks for the
Common Task Test (CTT) are selected (Section I).
b. Provides guidelines for CTT
administration (Section II), CTT Administration responsibilities
(Section III), CTT scoring (Section IV), and re-scoring of CTT
results (Section V).
c. Includes a list of the FY 99 CTT tasks and time allotments for evaluation (Section VI).
d. Includes a section on integrating performance measures from two risk management tasks in STP 21-24-SMCT with FY 99 CTT tasks (Section VII). The use of this section is optional. Commanders are encouraged to integrate safety, risk management, and force protection into CTT where possible. However, depending on the method of evaluation (e.g., round-robin test stations, field-training exercise (FTX), commanders have the final determination on applicability and feasibility. Section VII includes some suggested evaluation scenarios to give commanders ideas on how to integrate risk management into performance of FY 99 CTT tasks.
e. Provides addresses of task proponent agencies so those soldiers may make suggestions for improvement (Section VIII).
f. Contains overprinted DA Forms 5164-R (Hands On Evaluation) (Appendix A) the CTT Performance Sheets and a sample CTT Results Roll-Up sheet (Appendix B).
3. Purpose of CTT. The CTT is used to ensure that all soldiers, regardless of military of occupational specialty (MOS), are trained and routinely evaluated on fundamental combat and survival skills. CTT results enable the commander to take corrective steps necessary to ensure soldiers are prepared to fight and survive on the battlefield.
4. Selection.
a. Each year, the tasks selected for the CTT are based on nominations of CTT tasks from major Army Commands (MACOM), the Army Reserve, Army National Guard (ARNG), the Center for Army lessons Learned (CALL), and combat training centers (CTC).
b. MACOM, the Army Reserve, and ARNG nominate tasks that are critical to battlefield survival and unit mission accomplishment. CTC nominate tasks in which units have demonstrated low proficiency during exercises. CALL nominates tasks based on after action reports (AAR) from annual CTC rotations and Take Home Packages, AAR from major exercises and operations, and lessons learned from real world operations.
5. Policy and guidance - The publications below provide policy and guidance for the CTT:
a. AR 350-41 provides policy concerning CTT eligibility, exemptions, use of test results, test administration, scoring, and reporting.
b. DA Pam 350-XX, Handbook for the Administration of the Common Task Test (CTT). This handbook outlines procedures for planning and administering the CTT. (The CTT administration procedures outlined in this handbook are still applicable and remain in force until new guidance applicable only to CTT is published.)
6. References.
a. AR 350-41, Training In
Units, 19 Mar 93.
b. STP 21-1-SMCT, Soldier's
Manual of Common Tasks, Skill Level 1, Oct 94.
c. STP 21-24-SMCT, Soldier's
Manual of Common Tasks, Skill Levels 2-4, Oct 92.
SECTION II - CTT ADMINISTRATION GUIDELINES
7. Progressive and sequential. The CTT consists of 18 common tasks selected from STP 21-1-SMCT and STP 21-24-SMCT.
a. Core Tasks. All
soldiers will be tested on a core of twelve skill level 1 tasks.
b. Tasks for Sequential
Skill Levels. In addition, there are two tasks for each higher
skill level starting with skill level 2.
Soldiers will test on tasks at and below their level of responsibility (rank), as indicated in the chart below.
THESE SOLDIERS WILL TEST ON THESE TASKS.
PVT-CPL 12 SL 1
SGT 12 SL 1 + 2 SL 2
SSG 12 SL 1 + 2 SL + 2 SL 3
SFC 12 SL 1 + 2 SL 2 + 2 SL 3 + 2 SL 4
8. Administration scenarios. The CTT normally will be administered in one of the following types of scenarios:
a. Collective Training Event. CTT evaluation should be integrated with training exercises to conserve resources and improve realism. This is the preferred method because it can come closer to actual wartime conditions that soldiers will experience.
b. Test Site. Another method is the test site with individual test stations.
9. Practice and record evaluation.
a. Practice. Prior to the date or dates set for formal evaluation of tasks, soldiers may practice the tasks as many times as desired.
b. Record evaluation. On the announced test date or dates, CTT results should be recorded officially. The soldier will be scored PASS/FAIL for each performance step. The soldier will be scored GO if all steps are passed and NO GO if any steps are failed. A soldier scoring a "NO GO" on a task should be told what was done wrong and may be given the chance to do the task correctly. However, the soldier's official "NO GO score for the task will not be changed.
10. CTT passing score. The Department of the Army has not established an overall passing score for the CTT. Each task in the CTT is scored independently on a GO/NO GO (PASS/FAIL) basis. Ideally, soldiers should be proficient on all fundamental combat and survival tasks identified in the Soldier's Manual of Common Tasks (SMCT). This includes the tasks evaluated in the CTT.
11. Policy on selecting replacement tasks.
a. Hands On Test. The CTT should be conducted exclusively in the hands-on test mode. However, if equipment required to test a CTT task in the hands-on mode is not available in the unit or easily obtained elsewhere, the commander will select a replacement task from the appropriate SMCT. The commander is responsible for making every effort to obtain the equipment and support personnel required for CTT.
b. Replacement Tasks. The guidelines for selecting a replacement task are as follows. A replacement task:
c. Evaluating Replacement Tasks. Section IV and V provides further details on evaluating replacement tasks.
SECTION III - CTT ADMINISTRATION RESPONSIBILITIES
12. STP 21-1-SMCT.
a. STP 21-1-SMCT, Chapter 1, provides the following information on CTT administration:
b. STP 21-24-SMCT provides:
13. Responsibilities of the test site
manager and task scorer. The chart below summarizes the major
responsibilities of test site manager (TSM) and task scorer when
conducting the CTT. For detailed guidance, see Coordinating/
Working Draft Handbook for Administration of the Self-Development
Test (SDT) and Common Task Test (CTT).
THE TEST SITE MANAGER WILL: | THE TASK SCORER WILL: |
1. Obtain necessary scoring materials. (See Section IV.) | 1. Read the SMCT task summary, TRAINING AND EVALUATION section to prepare for task evaluation. |
2. Ensure all equipment and support personnel listed in the SMCT task summary are at test site | 2. Brief each soldier to be tested according to the SMCT task summary EVALUATION PREPARATION section. |
3. Ensure each task scorer has a copy of task the summary and necessary scoring materials | 3. Score each soldier using one (1) of the following: DA Form 5164-R or SMCT Evaluation Guide (with overlay) |
4. Ensure each soldier's CTT performance is recorded on the CTT Performance Sheet (See Section V.) | 4. Transfer the soldier's GO/NO GO (PASS/FAIL) score to the CTT Performance Sheet (See Section V) |
SECTION IV - CTT SCORING
14. Scoring materials. Soldiers will be scored using one (1) of the following:
a. Overprinted DA Form
5164-R (from Appendix A, or adapted by the unit for replacement
tasks).
b. Evaluation guides in the
SMCT.
15. DA Form 5164-R.
a. Overprinted DA Form
5164-R for all CTT tasks listed in the FY 99 CTT Notice are in
Appendix A of this manual. Two options for using DA Form 5164-R
are outlined in the table below.
OPTION 1 | OPTION 2 |
1. Reproduce enough DA Form/s 5164-R to evaluate each soldier | 1. Reproduce enough over-printed DA Form/s 5164-R to have one for every 15 soldiers |
2. Record the GO / NO GO (PASS/FAIL) results on the form | 2. Place the form under acetate or in a document protector. |
3. Transfer, in ink, GO / NO GO (PASS/FAIL) results to each soldier's CTT Performance Sheet | 3. Record GO / NO GO (PASS/FAIL) results on the acetate or document Protector, with a grease pencil or felt tip marker. |
4. Transfer (in ink) GO / NO GO (PASS/FAIL) results to each soldier's CTT Performance Sheet. | |
5. Erase the marks on the acetate so it may be used to score the next Soldier. |
b. Replacement Tasks. If a
replacement task is used on the CTT and the DA Form 5164-R is
used for scoring, the TSM will:
16. Evaluation guides in SMCTs.
a. Evaluation guides for the common tasks are in STP 21-1-SMCT and STP 21-24-SMCT. Each evaluation guide lists the performance measures to be used for CTT evaluation.
b. To use the SMCT evaluation guides for the CTT, do one (1) of the following:
Note: Do not make direct entries on the
guides in the SMCT.
SECTION V - RECORDING CTT RESULTS
17. CTT Performance Sheets.
a. Test Site Manager. The TSM is responsible for providing the CTT Performance Sheets (see Appendix B) to the task scorer.
b. Task Scorer. The task scorer is responsible for transferring soldiers' GO / NO GO (PASS/FAIL) scores from the DA Form 5164-R/evaluation guide to their CTT Performance Sheet.
18. Preparation of CTT performance
sheets. The chart below indicates steps that the TSM should
follow when reproducing the CTT Performance Sheet.
IF THE COMMANDER TESTS: | THEN THE TSM WILL: |
All the tasks on CTT Notice | 1. Remove CTT Performance Sheet from APP B in this manual. |
2. Locally reproduce 1 copy per soldier taking the CTT |
IF THE COMMANDER TESTS: | THEN THE TSM WILL: |
A replacement task in place of A replacement task in place of | 1. Remove the CTT Performance Sheet from APP B in this manual |
2. Line through the number and title of the task being replaced | |
3. Enter the number and the title of the replacement task above the task being replaced | |
4. Locally reproduce 1 copy per soldier taking the CTT. |
SECTION VI - FY 99 CTT TASKS
19. The following is a list of the FY 99
CTT Tasks. This task list is also published in the FY 99 CTT
Notice.
TASK NUMBER | TASK TITLE | SKILL LEVEL |
031-503-1017 | Respond to Depleted Uranium/Low level Radioactive Materials (DULLRAM) Hazards | SL 1-4 |
031-503-1013 | Decontaminate Yourself and Individual Equipment Using Chemical Decontamination Kits | SL 1-4 |
031-503-1035 | Protect Yourself From Chemical and Biological Injury/Contamination Using Your Assigned Protective Mask | SL 1-4 |
071-311-2025 | *Maintain an M16A1/M16A2 Rifle | SL 1-4 |
071-329-1002 | Determine The Grid Coordinates of A Point On A Military Map | SL 1-4 |
071-990-0002 | Operate An M16A1/M16A2 Rifle | SL 1-4 |
081-831-1000 | Evaluate A Casualty | SL 1-4 |
031-503-1036 | Maintain Your Assigned Protective Mask | SL 1-4 |
071-329-1005 | Determine a Location On The Ground By Terrain Association | SL 1-4 |
113-305-1001 | Communicate By a Tactical Radio | SL 1-4 |
031-503-1019 | React to Chemical or Biological Hazard or Attack | SL 1-4 |
071-326-5505 | Issue an Oral Operation Order | SL 2-4 |
031-503-2001 | Identify Chemical Agents Using M256-series Chemical Agent Detector Kits | SL 2-4 |
154-385-6263 | Conduct a Risk Assessment | SL 3-4 |
551-88N-0002 | Prepare for Unit Movement | SL 3-4 |
071-332-5000 | Prepare An Operation Overlay | SL 4 |
071-430-0006 | Conduct a Defense By a Platoon | SL 4 |
*Soldiers whose MOS and duty position require only
the pistol as their personal weapon may substitute the pistol in
place of the M16 rifle for evaluation. These soldiers will refer
to the appropriate Soldier Training Publication (STP) for
training and hands-on test evaluation.
20. Test
administration times. The following charts lists FY 99 CTT tasks
by task number and title. TSMs should refer to this chart for
planning purposes.
TASK NUMBER | TITLE | |
TEST TIME | ADMIN TIME | TOTAL TIME |
Asterisk = requirement specified in SMCT. No asterisk = recommended time (based on soldier time tryouts). Soldier should not be failed based solely on exceeding recommended time | Includes instructing soldier; completing DA Form 5164-R and CTT Sheet; restoring test station to order | Test time + admin time |
est administration times for SL 1-4 tasks
TASK NUMBER
031-503-1017 |
TITLE
Respond to Depleted Uranium/Low level Radioactive Materials (DULLRAM) Hazards |
||
TEST TIME | ADMIN TIME | TOTAL TIME | |
15 minutes | 5 minutes | 20 minutes |
TASK NUMBER
031-503-1015 |
TITLE
Protect Yourself From NBC Injury/Contamination With the Appropriate Mission Oriented Protective Posture (MOPP) Gear |
||
TEST TIME | ADMIN TIME | TOTAL TIME | |
*9 seconds to don mask and hood remaining steps untimed (approx 5 minutes total time) | 5-15 minutes depends on number of Masks | 10-20 minutes |
TASK NUMBER
031-503-1013 |
TITLE
Decontaminate Yourself and Individual Equipment Using Chemical Decontamination Kits |
||
TEST TIME | ADMIN TIME | TOTAL TIME | |
25 minutes | 5 minutes | 30 minutes |
TASK NUMBER
031-503-1035 |
TITLE
Protect Yourself From Chemical and Biological Injury/Contamination Using Your Assigned Protective Mask |
||
TEST TIME | ADMIN TIME | TOTAL TIME | |
*9 seconds to don mask and hood remaining steps untimed (approx 5 minutes total time) | 5-15 minutes depends on number of Masks | 10-20 minutes |
TASK NUMBER
071-311-2025 |
TITLE
Maintain M16A1/M16A2 Rifle |
||
TEST TIME | ADMIN TIME | TOTAL TIME | |
25 minutes | 5 minutes | 30 minutes |
TASK NUMBER
071-329-1002 |
TITLE
Determine The Grid Coordinates of A Point On A Military Map |
||
TEST TIME | ADMIN TIME | TOTAL TIME | |
6 minutes | 5 minutes | 11 minutes |
TASK NUMBER
071-990-0002TITLE Operate An M16A1/M16A2 Rifle |
||||
TEST TIME | ADMIN TIME | TOTAL TIME | ||
1 minutes | 2 minutes | 3 minutes |
TASK NUMBER
081-831-1000 |
TITLE
Evaluate A Casualty |
||
TEST TIME | ADMIN TIME | TOTAL TIME | |
15 minutes | 5 minutes | 20 minutes |
TASK NUMBER
031-503-1036 |
TITLE
Maintain Your Assigned Protective Mask |
||
TEST TIME | ADMIN TIME | TOTAL TIME | |
15 minutes | 5 minutes | 20 minutes |
TASK NUMBER
071-329-1005 |
TITLE
Determine a Location On The Ground By Terrain Association |
||
TEST TIME | ADMIN TIME | TOTAL TIME | |
8 minutes | 5 minutes | 13 minutes |
TASK NUMBER
113-305-1001 |
TITLE Communicate By a Tactical Radio |
|||
TEST TIME | ADMIN TIME | TOTAL TIME | ||
1 minute | 5 minutes | 13 minutes |
TASK NUMBER
031-503-1019 |
TITLE
React to Chemical or Biological Hazard/Attack |
||
TEST TIME | ADMIN TIME | TOTAL TIME | |
5 minute | 10 minutes | 15 minutes |
Test administration times for SL 2-4 tasks
TASK NUMBER
071-326-5505 |
TITLE
Issue an Oral Operations Order |
||
TEST TIME | ADMIN TIME | TOTAL TIME | |
5 minute | 10 minutes | 15 minutes |
TASK NUMBER
031-503-2001 |
TITLE
Identify Chemical Agents Using M256-series Chemical Agent Detector Kits |
||
TEST TIME | ADMIN TIME | TOTAL TIME | |
1 minute | 2 minutes | 3 minutes |
Test administration times for SL 3-4 tasks
TASK NUMBER
154-385-6263 |
TITLE
Conduct a Risk Assessment |
||
TEST TIME | ADMIN TIME | TOTAL TIME | |
5 minute | 10 minutes | 15 minutes |
TASK NUMBER
551-88N-0002 |
TITLE
Prepare for Unit Movement |
||
TEST TIME | ADMIN TIME | TOTAL TIME | |
5 minute | 10 minutes | 15 minutes |
Test administration times for SL 4 tasks
TASK NUMBER
071-332-5000 |
TITLE
Prepare An Operation Overlay |
||
TEST TIME | ADMIN TIME | TOTAL TIME | |
5 minute | 10 minutes | 15 minutes |
TASK NUMBER
071-430-0006 |
TITLE
Conduct A Defense By A Platoon |
||
TEST TIME | ADMIN TIME | TOTAL TIME | |
60 minute | 10 minutes | 90 minutes |
SECTION VII - COMMENTS AND SUGGESTIONS
21. Improvements and suggestions. Soldiers are invited to send comments and suggested improvements concerning common tasks on DA Form 2028 (Recommended Changes to Publications and Blank Forms) to the:
a. Responsible proponent agency (action copy). Look
at the chart in paragraph 30 below for addresses.
b.
Commander, U.S. Army Training Support Center, ATTN: ATIC-DLD-C,
Fort Eustis, VA 23604-5166 (information copy ONLY)
22. This
chart below lists proponent agencies for FY 99 CTT tasks. To
identify the proponent responsible for a particular task, match
the first three digits of the task number with the agency code.
AGENCY CODE |
PROPONENT ADDRESS |
031 |
Commandant,
U.S. Army Chemical School, ATTN: ATZN-CMR-A Fort McClellan, AL 36205-5020 |
071 |
Commandant,
U.S. Army Infantry School, ATTN: ATSH-OTT-A Fort Benning, GA 31905-5700 |
081 |
Commandant,
Academy of Health Sciences, ATTN: MCCS-HTI Fort Sam Houston, TX 78234-6122 |
APPENDIX A
DA FORM 5165-R (HANDS-ON EVALUATION)
A-1. DA Form 5164-R: TSMs and units can reproduce and use the overprinted forms provided.
A-2. DA Form, 5164-R for replacement tasks. To evaluate a replacement task using this form the TSM must:
a. Make a copy of the blank DA Form 5164-R in STP 21-24-SMCT.
b. Overprint the forms by entering the task performance measures from the appropriate evaluation guide in STP 21-1-SMCT or STP 21-24-SMCT. Use the forms in this appendix as a guide.
c.
Reproduce the form in sufficient quantities.
RESPOND TO DEPLETED URANIUM/LOW LEVEL RADIOACTIVE MATERIALS (DULLRAM) HAZARDS
031-503-1017
Conditions
Given any combat situation where Depleted Uranium (DU) munitions, or weapon systems that may contain DU or other Low Level Radioactive (LLR) Materials are in use or may be used; cravat/handkerchief, assigned protective mask, first-aid supplies, article similar to duct tape, NBC protective gloves; and one of the following situations:
1. You encounter serviceable, expended, or damaged DU kinetic energy penetrators or other munitions containing DU.
2. You encounter operational or damaged US or foreign equipment that had dull-black, heavy dust with any of the following:
a. Radioactive components.
b. Spalling looks like melted and re-hardened solder and will be visible around the entry hole created by the DU round as it enters the armor of the vehicle. Residual splattering of spalling could be located inside the vehicle.
Standards
Prevent DULLRAM contamination from entering your body.
TRAINING AND EVALUATION
Training Information Outline
NOTE: DULLRAM contamination will not interfere with mission completion.
NOTE: The only way to confirm DULLRAM contamination is with a radiation detection device.
1. Identify DULLRAM hazard.
a. Identify serviceable, expended, or damaged DU kinetic energy penetrators or other munitions that might contain DU.
b. Identify possible radioactive components in US or foreign equipment.
c. Identify the following DULLRAM visual impact signatures on damaged US or foreign equipment:
(1) Spalling looks like melted and re-hardened solder and will be visible around the entry hole created by the DU round as it enters the armor of the vehicle. Residual splattering of spalling could be located inside the vehicle.
(2) Dull black heavy dust.
2. Protect respiratory system.
a. Put on field expedient respiratory protection (cravat, handkerchief, etc.)
b. Put on protective mask as required if you are working in or around burning vehicle/equipment/material.
3. Warn others of DULLRAM hazard.
a. Alert other crew members or individuals within 50 meters of the possible DULLRAM hazard.
b. If vehicle or munitions are on fire, immediately get out and seek adequate cover.
CAUTION Vehicles that have been hit with munitions may contain unexploded ordnance. This ordnance may not retain its normal shape, and could be unstable. Exercise extreme caution when working near vehicles/equipment/materials, or when removing casualties, since the unstable ordnance may explode. |
NOTE: Do not submit NBC 1 Report too higher as you would with an NBC attack. Submit an NBC4 report.
4. Protect yourself from contact with DULLRAM.
a. Administer first aid as required.
(1) Immediately flush open wounds with water.
(2) Cover with field dressing. Do not attempt to remove any imbedded fragments.
b. Cover exposed skin if you are within 50 meters of hazard by pulling down sleeves, blouse pants, put on MOPP gloves, and button up coat.
c. Seal loose contamination on equipment surfaces using duct tape or other available products.
5. Report the suspected contamination to your supervisor and request further guidance.
Evaluation Preparation
Setup: Evaluate this task during a field exercise or during a normal training session. Establish a situation where contamination may occur. Have a piece of equipment or vehicle and simulate a DU round impact or LLR Material damaged by any means possible.
Brief Soldier: Tell the soldier that the vehicle/equipment has possible contamination in a certain location. Tell the soldier to identify the possible hazard and respond appropriately to the situation.
REFERENCES
Required: None
Related: TB 9-1300-278 and FM 3-4
HANDS-ON EVALUATION | DATE: | |
TASK TITLE | TASK NUMBER | |
Respond To Depleted Uranium/Low Level Radioactive Materials (Dullram) Hazards (SL 1-4) | 031-503-1017 | |
ITEM |
PERFORMANCE STEP TITLE | (CIRCLE ONE) |
1 |
Identified possible hazards | GO / NO GO |
NOTE: Method used depends on scenario selected | ||
2 |
Assumed field expedient respiratory protection cravat/handkerchief) immediately or donned protective mask as required | GO / NO GO |
3 |
Warned others of DULLRAM hazard | GO / NO GO |
a. Alerted other crew members or individuals within 50 meters of the possible DULLRAM hazard | GO / NO GO | |
b. Got out of vehicle and seek shelter if vehicle or munitions are on fire | GO / NO GO | |
4 |
Protected
himself from contact with DULLRAM a. Administered first aid (1) Flushed open wounds with water. (2) Covered open wounds with field dressing. Did not attempt to remove any imbedded fragments b. Covered exposed skin within 50 meters of hazard (pulled down sleeves, bloused pants, put on MOPP gloves, and buttoned up coat) c. Sealed loose contamination on equipment surfaces |
GO
/ NO GO GO / NO GO GO / NO GO |
5 |
Reported suspected contamination to supervisor | GO / NO GO |
Score the soldier GO if all performance measures are passed. Score the soldier NO GO if any performance measure is failed. If the soldier scores NO GO, show the soldier what was done wrong and how to do it correctly. Allow the soldier time to retrain and retest. | ||
EVALUATOR'S NAME | UNIT: | |
SOLDIER'S NAME |
STATUS:
GO / NO GO |
HANDS-ON EVALUATION | DATE: | |
TASK TITLE | TASK NUMBER | |
Protect Yourself From Nbc Injury/Contamination With The Appropriate Mission-Oriented Protective Posture (Mopp) Gear (SL 1-4) | 031-503-1015 | |
ITEM |
PERFORMANCE STEP TITLE | (CIRCLE ONE) |
1 |
Don correctly the directed MOPP gear | GO / NO GO |
2 |
Go from MOPP 0 to MOPP 4 in 8 minutes | GO / NO GO |
3 |
Eliminate body waste without becoming a casualty | GO / NO GO |
4 |
Correct deficiencies of a sleeping soldier | GO / NO GO |
Score the soldier GO if all performance measures are passed. Score the soldier NO GO if any performance measure is failed. If the soldier scores NO GO, show the soldier what was done wrong and how to do it correctly. Allow the soldier time to retrain and retest. | ||
EVALUATOR'S NAME | UNIT: | |
SOLDIER'S NAME |
STATUS:
GO / NO GO |
HANDS-ON EVALUATION | DATE: | |
TASK TITLE | TASK NUMBER | |
Decontaminate Yourself And Individual Equipment Using Chemical Decontaminating Kits (SL 1-4) | 031-503-1013 | |
ITEM |
PERFORMANCE STEP TITLE | (CIRCLE ONE) |
1 |
Donned the mask and hood without the hood, pulling the draw strings, or fastening the shoulder straps. | GO / NO GO |
2 |
Sought overhead cover or used a poncho protection against further contamination (if operational conditions permitted) | GO / NO GO |
3 |
3. Started the steps to decontaminate and eyes within 1 minute after they are contaminated. | GO / NO GO |
NOTE: Complete Step 4 or Steps 5 and 6. | ||
4 |
Decontaminated
using M258A1 Decon Kit a. Decontaminated hands, eyes, face, neck, ears, and redid hands using one Wipe 1 and one Wipe 2. b. Assumed MOPP4. c. Decontaminated weapons, gloves, helmet, and hand tools using additional Wipes 1 and 2 d. Decontaminated exterior of hood and mask(used Wipe 2 then Wipe 1 on mask outserts). |
GO / NO GO |
5 |
Decontaminated
skin using M291 Decon Kit a. Decontaminated hands, face, and inside of mask. b. Assumed MOPP4. c. Removed decon powder with soap and water when operational conditions permitted. |
GO / NO GO |
6 |
Decontaminated
equipment using M295 Decon Kit a. Decontaminated gloves, exposed areas of mask and hood, weapon, and helmet using the first mitt. b. Decontaminated LCE and accessories, mask carrier, overboots, and redid gloves using second mitt. c. Removed decon powder when operational conditions permitted. |
GO / NO GO |
NOTE: Soldier complied with all federal, state, and local laws/regulations regarding disposal of hazardous waste disposal. | ||
7 |
Placed expended uncontaminated materials plastic bag and turned into supervisor. | GO / NO GO |
Score the soldier GO if all performance measures are passed. Score the soldier NO GO if any performance measure is failed. If the soldier scores NO GO, show the soldier what was done wrong and how to do it correctly. Allow the soldier time to retrain and retest. | ||
EVALUATOR'S NAME | UNIT: | |
SOLDIER'S NAME | STATUS:
GO / NO GO |
HANDS-ON EVALUATION | DATE: | |
TASK TITLE | TASK NUMBER | |
Protect Yourself From Chemical/Biological Contamination Using Your Assigned Protective Mask (SL 1-4) | 031-503-1035 | |
ITEM |
PERFORMANCE STEP TITLE | (CIRCLE ONE) |
1 |
Stopped breathing | GO / NO GO |
NOTE: All time standards are for administrative (non-combat) evaluation purposes only | ||
2 |
Donned mask within 9 seconds | GO / NO GO |
3 |
Cleared
mask. a. Sealed outlet valve. b. Breathed out |
GO / NO GO |
4 |
Checked
mask. a. Breathed in. b. Facepiece collapsed to face. |
GO / NO GO |
5 |
Resumed breathing | GO / NO GO |
6 |
Completed
securing of mask. a. Pulled hood over head. b. Zipped (if so equipped) front closed to cover all bare skin |
GO / NO GO |
7 |
Completed steps 1 through 6 in sequence | GO / NO GO |
NOTE: All time standards are for administrative (non-combat) evaluation purposes only | ||
8 |
Drank water while wearing assigned protective mask within 2 minutes without becoming a casualty | GO / NO GO |
9 |
Removed
mask. a. Disconnected microphone (if so equipped). b. Unfastened straps. c. Loosened draw cord. d. Unzipped the zipper (if so equipped). e. Pulled hood off the head. f. Loosened cheek straps. g. Held face piece to face with one hand. h. Pulled head harness over the head. i. Pulled face piece away from face. |
GO / NO GO |
10 |
Stored
mask. a. Put mask in mask carrier. b. Closed mask carrier. c. Stored mask in cool, dry place. d. Hung carrier by the hook on the short strap. |
GO / NO GO |
Score the soldier GO if all performance measures are passed. Score the soldier NO GO if any performance measure is failed. If the soldier scores NO GO, show the soldier what was done wrong and how to do it correctly. Allow the soldier time to retrain and retest. | ||
EVALUATOR'S NAME | UNIT: | |
SOLDIER'S NAME | STATUS:
GO / NO GO |
HANDS-ON EVALUATION | DATE: | |
TASK TITLE | TASK NUMBER | |
Maintain An M16A1 Or M16A2 Rifle (SL 1-4) | 071-311-2025 | |
ITEM |
PERFORMANCE STEP TITLE | (CIRCLE ONE) |
1 |
Clear the rifle before disassembly | GO / NO GO |
2 |
Disassemble the rifle | GO / NO GO |
3 |
Clean rifle parts using the correct materials | GO / NO GO |
4 |
Inspect for and report any missing unserviceable parts | GO / NO GO |
5 |
Lubricate the rifle using the correct technique for the specific parts based on the temperature. | GO / NO GO |
6 |
Assemble the rifle | GO / NO GO |
7 |
Perform a check to determine correct functioning of the rifle | GO / NO GO |
8 |
Disassemble the magazine | GO / NO GO |
9 |
Clean the magazine | GO / NO GO |
10 |
Inspect for and report any damage to magazine parts | GO / NO GO |
11 |
Lubricate the magazine using the correct lubrication technique for the specific parts based on the temperature | GO / NO GO |
12 |
Assemble the magazine | GO / NO GO |
13 |
Clean, inspect, and turn in any defective ammunition | GO / NO GO |
Score the soldier GO if all performance measures are passed. Score the soldier NO GO if any performance measure is failed. If the soldier scores NO GO, show the soldier what was done wrong and how to do it correctly. Allow the soldier time to retrain and retest. | ||
EVALUATOR'S NAME | UNIT: | |
SOLDIER'S NAME |
STATUS:
GO / NO GO |
HANDS-ON EVALUATION | DATE: | |
TASK TITLE | TASK NUMBER | |
Determine The Grid Coordinates Of A Point On A Military Map (SL 1-4) | 071-329-1002 | |
ITEM |
PERFORMANCE STEP TITLE | (CIRCLE ONE) |
1 |
Determine the six-digit grid coordinate for the point on the map with a 100-meter tolerance. | GO / NO GO |
2 |
Record the grid coordinates with the correct two-letter 100,000-meter-square identifier | GO / NO GO |
Score the soldier GO if all performance measures are passed. Score the soldier NO GO if any performance measure is failed. If the soldier scores NO GO, show the soldier what was done wrong and how to do it correctly. Allow the soldier time to retrain and retest. | ||
EVALUATOR'S NAME | UNIT: | |
SOLDIER'S NAME | STATUS:
GO / NO GO |
HANDS-ON EVALUATION | DATE: | |
TASK TITLE | TASK NUMBER | |
*Operate an M16A1 or M16A2 Rifle (SL 1-4) | 071-990-0002 | |
ITEM |
PERFORMANCE STEP TITLE | (CIRCLE ONE) |
1 |
1.
Load the rifle a) Prepare the M16A1 or M16A2 rifle for semiautomatic fire and the M16A1 rifle for automatic fire, ensuring the chamber is clear and the magazine is seated. b) Prepare the M16A2 rifle for burst fire, ensuring the magazine is seated. c) Point the weapon in a safe direction. d) Chamber a round, ensuring the bolt is fully forward and locked. e) Place the selector lever in the SAFE position. |
GO / NO GO |
2 |
Unload
the rifle a) Point the rifle muzzle in a safe direction. b) Place the selector lever on SAFE. c) Remove the magazine from the rifle. d) Lock the bolt open and return the charging handle to the forward position e) Lock the bolt open and return the charging handle to the forward position. f) Press the upper portion of the bolt catch, allowing the bolt to go forward. g) Pull the trigger to release the pressure on the firing pin spring |
GO / NO GO |
3 |
Correct
malfunctions of the rifle a) Immediate action. (1) Slap upward on the magazine. (2) Pull the charging handle all the way to the rear (3) Observe the ejection port for ejection of the case or cartridge. Check the chamber for obstructions and remove if any are present. (4) Release the charging handle to feed a new round in the chamber. (5) Tap the forward assist. (6) Shoot the rifle. (7) Perform the steps in sequence. b) Remedial action. (1) Check for jammed ammunition and remove, if present. (2) Clear and disassemble the rifle. (3) Inspect for dirty, corroded, missing, or broken parts. (4) Clean dirty or corroded parts. (5) Replace missing or broken parts. (6) Assemble the rifle. (7) Perform a function check. (8) Load and fire the rifle. |
GO / NO GO |
4 |
Zero
the rifle a) M16A1 rifle. (1) Select the long range aperture "L." (2) Establish the mechanical zero, if necessary. (3) Establish a correct sight picture. (4) Fire a three-round shot group. (5) Triangulate the shot group. (6) Repeat steps 4.a.(3) and (4) until the shot group falls within 4 centimeters. (7) Adjust the sights to move the shot group to within the zero circle, if necessary. (8) Determine and record the 250-meter battlesight zero. b) M16A2 rifle. (1) Select the unmarked long range aperture. (2) Establish the mechanical zero, if necessary. (3) Establish a correct sight picture. (4) Fire a three-round shot group. (5) Triangulate the shot group. (6) Repeat steps 4.b.(3) and (4) until the shot group falls within 4 centimeters. (7) Adjust the sights to move the shot group to within the zero circle, if necessary. (8) Determine and record the 300 meter-battlesight zero. |
GO / NO GO |
5 |
Engage
targets a) assume a position that provides cover and concealment and good observation. b) Detect and determine if targets should be engaged. c) Place fire on the targets using the appropriate firing techniques. |
GO / NO GO |
Score the soldier GO if all performance measures are passed. Score the soldier NO GO if any performance measure is failed. If the soldier scores NO GO, show the soldier what was done wrong and how to do it correctly. Allow the soldier time to retrain and retest. | ||
EVALUATOR'S NAME | UNIT: | |
SOLDIER'S NAME | STATUS:
GO / NO GO |
HANDS-ON EVALUATION | DATE: | |
TASK TITLE | TASK NUMBER | |
Evaluate A Casualty (SL 1-4) | 081-831-1000 | |
ITEM |
PERFORMANCE STEP TITLE | (CIRCLE ONE) |
1 |
Check for responsiveness | GO / NO GO |
2 |
Check for breathing, if necessary | GO / NO GO |
3 |
Check for bleeding | GO / NO GO |
4 |
Check for shock | GO / NO GO |
5 |
Check for fractures and immobilize neck or back injuries, if found | GO / NO GO |
6 |
Check for burns | GO / NO GO |
7 |
Check for a head injury. | GO / NO GO |
8 |
Seek medical aid | GO / NO GO |
9 |
Perform all necessary steps in sequence | GO / NO GO |
Score the soldier GO if all performance measures are passed. Score the soldier NO GO if any performance measure is failed. If the soldier scores NO GO, show the soldier what was done wrong and how to do it correctly. Allow the soldier time to retrain and retest. | ||
EVALUATOR'S NAME | UNIT: | |
SOLDIER'S NAME | STATUS:
GO / NO GO |
HANDS-ON EVALUATION | DATE: | |
TASK TITLE | TASK NUMBER | |
Maintain Your Assigned Protective Mask (SL 1-4) | 031-503-1036 | |
ITEM |
PERFORMANCE STEP TITLE | (CIRCLE ONE) |
1 |
Inspected
the mask and hood IAW applicable TM. a. Identified all deficiencies and shortcomings Mask Technical Manual Paragraphs M17 TM 3-4240-279-10 2-4 and 2-5 M24, M25 TM 3-4240-280-10 2-4 and 2-5 M42 TM 3-4240-300-10 Will be replaced by TM 3-4240-343-10 par 2-4 and 2-5 M43 TM 3-4240-312-12&P 2-4 and 2-5 M40 TM 3-4240-339-10 2-4 and 2-5 M42, M42A1, M42A2 TM 3-4240-343-10 TBP b. Corrected all
operator correctable deficiencies. |
GO / NO GO |
2 |
Cleaned
the mask, hood, and all authorized accessories and
components) IAW applicable TM. (see below) Mask Technical Manual Paragraphs M17 T M 3-4240-279-10 3-5 M24, M25 TM 3-4240-280-10 3-1 M42 TM 3-4240-300-10-2 Will be replaced by TM 3-4240-343-10 par 3-4 M43 TM 3-4240-312-12&P 3-4 M40 TM 3-4240-339-10 3-4 M42, M42A1, M42A2 TM 3-4240-343-10 TBP |
GO / NO GO |
3 |
Replaced
defective filter elements or canisters as necessary IAW
applicable TM. (see below) Mask Technical Manual Paragraphs M17 T M 3-4240-279-10 3-5 M24, M25 TM 3-4240-280-10 3-1 M42 TM 3-4240-300-10-2 Will be replaced by TM 3-4240-312-12&P par 2-6 M43 TM 3-4240-312-12&P 2-6 M40 TM 3-4240-339-10 2-6 and 3-2 M42, M42A1, M42A2 TM 3-4240-343-10 TBP All mask filters/canistes SB 3-30-2 |
GO / NO GO |
4 |
Stored
the protective mask IAW applicable TM. (see below)
Mask Technical Manual Paragraphs M17 TM 3-4240-279-10 2-17 M24, M25 TM 3-4240-280-10 2-14, 2-15, 2-16, 2-17 M42 TM 3-4240-300-10-2 Will be replaced by TM 3-4240-343-10 2-16 and 2-17 M43 TM 3-4240-312-12&P 2-8I M40 TM 3-4240-339-10 2-20 M42, M42A1, M42A2 TM 3-4240-343-10 TBP |
GO / NO GO |
5 |
Did not damage the mask | GO / NO GO |
Score the soldier GO if all performance measures are passed. Score the soldier NO GO if any performance measure is failed. If the soldier scores NO GO, show the soldier what was done wrong and how to do it correctly. Allow the soldier time to retrain and retest. | ||
EVALUATOR'S NAME | UNIT: | |
SOLDIER'S NAME |
STATUS:
GO / NO GO |
HANDS-ON EVALUATION | DATE: | |
TASK TITLE | TASK NUMBER | |
Determine A Location On The Ground By Terrain Association (SL 1-4) | 071-329-1005 | |
ITEM |
PERFORMANCE STEP TITLE | (CIRCLE ONE) |
1 |
Identify the type of terrain feature upon which you are located | GO / NO GO |
2 |
Identify the terrain features around your location | GO / NO GO |
3 |
Orient the map | GO / NO GO |
4 |
Determine the remaining three cardinal directions | GO / NO GO |
5 |
Identify the same terrain features on the map | GO / NO GO |
6 |
Determine the six-digit grid coordinate of your own location (the point selected must be within 100 meters of your location) | GO / NO GO |
Score the soldier GO if all performance measures are passed. Score the soldier NO GO if any performance measure is failed. If the soldier scores NO GO, show the soldier what was done wrong and how to do it correctly. Allow the soldier time to retrain and retest. | ||
EVALUATOR'S NAME | UNIT: | |
SOLDIER'S NAME | STATUS:
GO / NO GO |
HANDS-ON EVALUATION | DATE: | |
TASK TITLE | TASK NUMBER | |
Communicate By A Tactical Radio (SL 1-4) | 113-305-1001 | |
ITEM |
PERFORMANCE STEP TITLE | (CIRCLE ONE) |
1 |
Collect references, resources and assembled MANPACK | GO / NO GO |
2 |
Place
radio into operation a. Preset controls. b. Turn CB1 on MANPACK to "ON". c. Test Radio Transmission (RT) circuits. d. Test transmitter. e. Set battery life condition. |
GO / NO GO |
3 |
Enter
Net a. Load Traffic Encryption Key (TEK). b. Hopset c. Operate radio. |
|
4 |
Transmit
message a. Establish secure Single Channel communications. b. Use prowords, call signs, frequencies, item numbers and authentication. |
|
Score the soldier GO if all performance measures are passed. Score the soldier NO GO if any performance measure is failed. If the soldier scores NO GO, show the soldier what was done wrong and how to do it correctly. Allow the soldier time to retrain and retest. | ||
EVALUATOR'S NAME | UNIT: | |
SOLDIER'S NAME |
STATUS:
GO / NO GO |
HANDS-ON EVALUATION | DATE: | |
TASK TITLE | TASK NUMBER | |
React To Chemical Or Biological Hazard/Attack (SL 1-4) | 031-503-1019 | |
ITEM |
PERFORMANCE STEP TITLE | (CIRCLE ONE) |
1 |
Don the mask within the acceptable time period without securing the hood | GO / NO GO |
2 |
Give the alarm both orally and visually | GO / NO GO |
3 |
Take cover in the most protected location available | GO / NO GO |
4 |
Decontaminate your skin, if necessary | GO / NO GO |
5 |
Assume MOPP level 4. | GO / NO GO |
6 |
Decontaminate personal equipment as necessary | GO / NO GO |
7 |
Notify your supervisor | GO / NO GO |
Score the soldier GO if all performance measures are passed. Score the soldier NO GO if any performance measure is failed. If the soldier scores NO GO, show the soldier what was done wrong and how to do it correctly. Allow the soldier time to retrain and retest. | ||
EVALUATOR'S NAME | UNIT: | |
SOLDIER'S NAME |
STATUS
GO / NO GO |
HANDS-ON EVALUATION | DATE: | |
TASK TITLE | TASK NUMBER | |
Issue an Oral Operation Order (SL 2-4) | 071-326-5505 | |
ITEM |
PERFORMANCE STEP TITLE | (CIRCLE ONE) |
1 |
1.
Develop a clear and concise OPORD in the following
standard OPORD format: a. Situation. b. Mission. c. Execution d. Service support e. Command and signal |
GO / NO GO |
2 |
Issue the order in a clear and concise manner and clarify questions | GO / NO GO |
Score the soldier GO if all performance measures are passed. Score the soldier NO GO if any performance measure is failed. If the soldier scores NO GO, show the soldier what was done wrong and how to do it correctly. Allow the soldier time to retrain and retest. | ||
EVALUATOR'S NAME | UNIT: | |
SOLDIER'S NAME | STATUS:
GO / NO GO |
HANDS-ON EVALUATION | DATE: | |
TASK TITLE | TASK NUMBER | |
Identify Chemical Agents Using M256-Series Chemical Agent Detector Kit (SL 2-4) | 031-503-2001 | |
ITEM |
PERFORMANCE STEP TITLE | (CIRCLE ONE) |
1 |
Performed operator PMCS on M256-series chemical agent detector kit | GO / NO GO |
2 |
Prepared
the kit for use. a. Read the instruction cards. b. Disposed of the sampler-detector if defective or unserviceable |
GO / NO GO |
3 |
Tested
for toxic agent vapors. a. Removed two loose pads from heater and swing heater back in. Keep protective strips over the spots. b. Exposed lewisite tablet. Rub tab (marked 2) over lewisite tablet. c. Hold sampler-detector with arrow up. Use heater pad to crush four ampules (marked 3). d. Turned sampler-detector so arrow points down and squeeze ampules (marked 3) forcing liquid onto spots. e. Hold the sampler-detector with arrow down and your thumb on protective strip over middle test spot. Swing heater away from test spot. Crush one green ampule, swing heater over test spot, and keep in place for two minutes. DO NOT USE HEATER PADS TO CRUSH GREEN AMPULES. f. Exposed the test spots for ten
minutes. |
GO / NO GO |
4 |
Corrected and dispose of expended sampler-detector | GO / NO GO |
5 |
Report results to supervisor | GO / NO GO |
Score the soldier GO if all performance measures are passed. Score the soldier NO GO if any performance measure is failed. If the soldier scores NO GO, show the soldier what was done wrong and how to do it correctly. Allow the soldier time to retrain and retest. | ||
EVALUATOR'S NAME | UNIT: | |
SOLDIER'S NAME | STATUS:
GO / NO GO |
CONDUCT A RISK ASSESSMENT
154-385-6263
CONDITIONS
As a small unit leader, given a mission or task, in a garrison or tactical environment.
STANDARDS
Make an oral or written report that correctly identifies the hazards associated with the mission or task, the level of risk for each identified hazard, and the initial overall level of risk.
TRAINING AND EVALUATION
Performance Steps
1. Identify the hazards.
a.. List the hazards associated with the mission or task.
b. Determine which hazards need to be risk-managed.
2. Assess the hazards to determine their impact on the mission or task.
a.. Determine the level of risk for each hazard.
b. Determine the initial overall level of risk for the mission or task.
Evaluation Preparation
Setup: To evaluate this task you need an assigned mission or task which may be in the form of an operations order (OPORD), fragmentary order (FRAGO), warning order, patrol order, training task, etc.
Brief Soldier: Tell the soldier to do a risk assessment for the assigned mission or task.
REFERENCES
FM 101-5 Staff Organization and Operations, May 1997
FM 100-14 Risk Management, September 1997
HANDS-ON EVALUATION | DATE: | |
TASK TITLE | TASK NUMBER | |
Conduct A Risk Assessment (SL 3-4) | 154-385-6263 | |
ITEM |
PERFORMANCE STEP TITLE | (CIRCLE ONE) |
1 |
Identified all the hazards associated with the mission or task (a minimum of one, depending on the mission or task) | GO / NO GO |
2 |
Determined the level of risk (E,H,M,L) for each hazard | GO / NO GO |
3 |
Determined the initial overall level of risk for the mission or task | |
Score the soldier GO if all performance measures are passed. Score the soldier NO GO if any performance measure is failed. If the soldier scores NO GO, show the soldier what was done wrong and how to do it correctly. Allow the soldier time to retrain and retest. | ||
EVALUATOR'S NAME | UNIT: | |
SOLDIER'S NAME | STATUS:
GO / NO GO |
Prepare for Unit Movement
551-88N-0002
CONDITIONS
You have received a movement order directing your unit to conduct a move to the port of embarkation (A/SPOE) and deploy in support of an Army or Joint mission. You have access to the unit SOP and all unit movement directives.
STANDARDS
Prepare the unit for movement using the necessary references (vehicle -10s) and equipment to deliver vehicles and equipment to arrive at the port of debarkation (A/SPOD) with no loss of vehicles or equipment, operational, and ready for combat.
TRAINING AND EVALUATION GUIDE
Performance Steps
1. Prepare Vehicles and Equipment for Shipment.
a. Complete the Vehicle Preparation Checklist.
b. Load vehicles with unit equipment.
c. Load vehicles in containers (when applicable).
d. Prepare Vehicle Load Cards.
2. Prepare Equipment and Supplies for Shipment.
a. Build 463L Pallet.
b. Load equipment and supplies into containers.
c. Prepare hazardous materials for shipment.
PERFORMANCE EVALUATION GUUIDE
Evaluation Preparation
Setup: Evaluate this task during a field training exercise or a unit training exercise.
Brief Soldier: Inform the soldier that the evaluation is measured on the ability to perform all the functions listed.
REFERENCES
FM 55-65 FORSCOM Reg 55-1 TM 38-250 Applicable -10 TM
HANDS-ON EVALUATION | DATE: | |
TASK TITLE | TASK NUMBER | |
Prepare for Unit Movement (SL 3-4) | 551-88N-0002 | |
ITEM |
PERFORMANCE STEP TITLE | (CIRCLE ONE) |
1 |
Clean equipment thoroughly | GO / NO GO |
2 |
Inspect vehicle for defects | GO / NO GO |
3 |
Stencil vehicle | GO / NO GO |
4 |
Check/Reduce fuel levels | GO / NO GO |
5 |
Inspect fuel cans | GO / NO GO |
6 |
Remove/Secure sensitive/classified materials | GO / NO GO |
7 |
Remove and consolidate hazardous materials | GO / NO GO |
8 |
Reduce vehicle length, height, width | GO / NO GO |
9 |
Secure ignition keys | GO / NO GO |
10 |
Secure rotating parts | GO / NO GO |
11 |
Check for "tiedown" devices | GO / NO GO |
12 |
Protect electronic/commo components | GO / NO GO |
13 |
Box and store OVE | GO / NO GO |
14 |
Lower cab assembly (if required) | GO / NO GO |
15 |
Maximize cargo space noting payload capacity | GO / NO GO |
16 |
Protect from metal-to metal contact | GO / NO GO |
17 |
Protect from water damage | GO / NO GO |
18 |
Secure all loaded equipment | GO / NO GO |
19 |
Secure the vehicle | GO / NO GO |
20 |
Document the load | GO / NO GO |
21 |
Prepare the load card | GO / NO GO |
22 |
22. Build the 463L Pallet | |
GO / NO GO | ||
GO / NO GO | ||
GO / NO GO | ||
GO / NO GO | ||
GO / NO GO | ||
GO / NO GO | ||
23 |
Load equipment and supplies in containers | |
GO / NO GO | ||
GO / NO GO | ||
GO / NO GO | ||
GO / NO GO | ||
GO / NO GO | ||
GO / NO GO | ||
GO / NO GO | ||
24 |
Prepare hazardous material for shipment | |
GO / NO GO | ||
GO / NO GO | ||
GO / NO GO | ||
GO / NO GO | ||
GO / NO GO | ||
Score the soldier GO if all performance measures are passed. Score the soldier NO GO if any performance measure is failed. If the soldier scores NO GO, show the soldier what was done wrong and how to do it correctly. Allow the soldier time to retrain and retest. | ||
EVALUATOR'S NAME | UNIT: | |
SOLDIER'S NAME |
STATUS:
GO / NO GO |
PREPARE AN OPERATION OVERLAY
071-332-5000
CONDITIONS
Given a complete copy of an operation order (OPORD) your unit is to execute, a commander's or a battalion operations officer's (S3) guidance (to include time available for preparation), overlay paper, tape, a map of the operational area, colored pencils (red, black, green, blue, yellow), a coordinate scale, and FM 101-5-1.
STANDARDS
Within the time specified, the overlay must-
1. Be identified by map reference data, effective date, and purpose.
2. Contain classification markings and downgrading instructions, if applicable.
3. Contain distribution instructions and authentication, if distributed separately.
4. Be prepared in accordance with overlay techniques outlined in FM 101-5-1.
5. Be prepared with boundaries and unit locations plotted to within 50 meters and tactics and fire support measures to within 25 meters.
TRAINING AND EVALUATION
Training Information Outline
NOTE: Overlay techniques involve the use of military symbols to portray, in a condensed form, the plans, orders and information concerning a military operation.
1. Register the overlay. Figure 1.
a. Place the overlay material over the map area that is to be represented on the overlay. Tape the overlay material to the map so that it will not move during preparation of the overlay.
b. Trace the grid intersections nearest the opposite corners of the overlay and label each with the proper grid coordinates.
Figure 1. Registering the overlay.
2. Plot information required on the overlay IAW the following guidelines:
a. Symbols. Use standard graphic military symbols in FM 101-5-1. If nonstandard symbols are used, list them in the legend on the overlay and describe what they mean.
b. Colors. Show all obstacles, friendly, enemy, neutral, or factional in green. Show all
friendly control measures in black. Show all enemy control measures in red, if red is not available, draw them in black with a double line or the abbreviation "ENY" placed on the graphic in at least two places to avoid confusion. If other colors are used to show friendly or enemy factions, list them in the legend on the overlay and describe what each color means.
c. Use of solid and broken lines. When location of units, control measures, and coordinating detail are in effect and will continue, or is made effective by the order being prepared, draw in the appropriate graphics using solid lines. Show any proposed or future location, control measure or coordinating detail to become effective later by using broken lines.
d. Labeling of boundaries:
(1) Draw in boundaries to define the right, left, rear and forward limits of a units area of responsibility. Figure 2.
(2) If possible, draw boundaries along identifiable terrain features on the ground, and situated so that the key terrain features (rivers, avenues of approach) are wholly inclusive to one unit.
(3) Place size markings perpendicular to the boundary line. If units are of unequal size, show the symbol of the higher unit and write in the complete designation of the lower unit. Figure 2 b and 2 c.
Figure 2. Labeling of boundaries.
(4) Use Roman numerals to show a corps boundary. Use a national abbreviation if the boundary is between forces from different countries. Figure 2 c.
(5) Label boundaries with abbreviations when the abbreviation will not cause confusion. Place text labeling so that it can be read when the bottom of the overlay is closest to the reader. Labeling written on an angle should be readable when the overlay is turned a quarter of a turn (90 degrees) clockwise (to the left). Figure 2 c.
e. Labeling control measure lines.
(1) Label fire support control lines with the effective times, the controlling headquarters, the abbreviation of the control measure. Label both ends of the line and repeat as often as necessary for clarity along any line that passes through many boundaries. Figure 3.
Figure 3. Labeling of fire support control lines.
(2) Name all phase lines and mark as "PL NAME" for easy reference during orders and radio transmissions. Other lines that have a specific purpose and are also named as phase lines should have the primary purpose such as no fire line "NFL" labeled on top of the name and at both ends of the line as often as necessary for clarity. The phase line labeling should be in parenthesis. Figure 4.
Figure 4. Labeling of phase lines.
f. Areas. Draw in and mark areas with the abbreviation for the type of area followed by a name. Labeling should be in the center of the area unless the area is too small or the labeling would interfere with the locating of units. Figure 5.
Figure 5. Labeling of areas.
g. Points. Label points by letter, number, or a combination of both. An abbreviation for the point may be inside the point, or in the upper right hand corner of the point symbol. Figure 6.
Figure 6. Labeling of points.
h. Unit location. Draw in unit symbols so that the center mass of the symbol is in the vicinity of the center mass of the unit. To show precise location, draw the symbol near the location and add a staff so that the end of the staff corresponds with coordinates the exact location. Figure 7.
Figure 7. Unit locations.
3. Classification. Mark the top and bottom of the overlay with the classification of the order being prepared.
4. Prepare a legend on or near the bottom of the overlay that identifies and describes any nonstandard graphics used to construct the overlay
Evaluation Preparation
Setup: Provide the soldier with all the material and equipment listed in the conditions statement.
Brief Soldier: Tell the soldier he is to prepare an overlay for the operation indicated in the OPORD.
3. Classification. Mark the top and bottom of the overlay with the classification of the order being prepared.
REFERENCE
FM 101-5-1 Operational Terms and Graphics.
HANDS-ON EVALUATION | DATE: | |||
TASK TITLE | TASK NUMBER | |||
PREPARE AN OPERATION OVERLAY (SL 4) | 071-332-5000 | |||
ITEM |
PERFORMANCE STEP TITLE | (CIRCLE ONE) | ||
1 |
Register the overlay with the proper grid coordinates | GO / NO GO | ||
2 |
Plot information required on the overlay IAW the
following guidelines a. Symbols. Use standard graphic military symbols in FM 101-5-1. b. Colors. Show all obstacles, friendly, enemy, neutral, or factional in green. Show all friendly control measures in black. Show all enemy control measures in red, if red is not available, draw them in black with a double line or the abbreviation "ENY" placed on the graphic in at least two places to avoid confusion. c. Use of solid and broken lines. When location of units, control measures, and coordinating detail are in effect and will continue, or is made effective by the order being prepared, draw in the appropriate graphics using solid lines. Show any proposed or future location, control measure or coordinating detail to become effective later by using broken lines. d. Labeling of boundaries: (1) Draw in boundaries to define the right, left, rear and forward limits of a units area of responsibility. (2) If possible, draw boundaries along identifiable terrain features on the ground, and situated so that the key terrain features (rivers, avenues of approach) are wholly inclusive to one unit. (3) Place size markings perpendicular to the boundary line. If units are of unequal size, show the symbol of the higher unit and write in the complete designation of the lower unit. (4) Use Roman numerals to show a corps boundary. Use a national abbreviation if the boundary is between forces from different countries. (5) Label boundaries with abbreviations when the abbreviation will not cause confusion. Place text labeling so that it can be read when the bottom of the overlay is closest to the reader. Labeling written on an angle should be readable when the overlay is turned a quarter of a turn (90 degrees) clockwise (to the left). e. Labeling control measure lines. (1) Label fire support control lines with the effective times, the controlling headquarters, the abbreviation of the control measure. Label both ends of the line and repeat as often as necessary for clarity along any line that passes through many boundaries. (2) Name all phase lines and mark as "PL NAME" for easy reference during orders and radio transmissions. Other lines that have a specific purpose and are also named as phase lines should have the primary purpose such as no fire line "NFL" labeled on top of the name and at both ends of the line as often as necessary for clarity. The phase line labeling should be in parenthesis. f. Areas. Draw in and mark areas with the abbreviation for the type of area followed by a name. Labeling should be in the center of the area unless the area is too small or the labeling would interfere with the locating of units. g. Points. Label points by letter, number, or a combination of both. An abbreviation for the point may be inside the point, or in the upper right hand corner of the point symbol. h. Unit location. Draw in unit symbols so that the center mass of the symbol is in the vicinity of the center mass of the unit. To show precise location, draw the symbol near the location and add a staff so that the end of the staff corresponds with coordinates the exact location. |
GO / NO GO | ||
3 |
Classification. Mark the top and bottom of the overlay with the classification of the order being prepared | GO / NO GO | ||
4 |
Prepare a legend on or near the bottom of the overlay that identifies and describes any nonstandard graphics used to construct the overlay | GO / NO GO | ||
Score the soldier GO if all performance measures are passed. Score the soldier NO GO if any performance measure is failed. If the soldier scores NO GO, show the soldier what was done wrong and how to do it correctly. Allow the soldier time to retrain and retest. | ||||
EVALUATOR'S NAME | UNIT: | |||
SOLDIER'S NAME | STATUS: GO / NO GO |
HANDS-ON EVALUATION | DATE: | |
TASK TITLE | TASK NUMBER | |
Conduct a Defense by a Platoon (SL 4) | 071-430-0006 | |
ITEM |
PERFORMANCE STEP TITLE | (CIRCLE ONE) |
1 |
Conduct preparation for execution of the defense. Perform the required troop-leading procedures: | GO / NO GO |
Note: Troop-leading procedures are a series of eight inter-related overlapping processes that are often accomplished concurrently and do not follow a rigid sequence. Leaders must use the procedure as outlined, if only in abbreviated form to ensure that nothing is left out of planning and preparation and that soldiers understand the mission and prepare adequately. | ||
a..
Receive the mission. (Receive the company OPORD).
b. Issue warning order to subordinate leaders. Include location of the defense, any special equipment required, and the earliest time for movement. c. Make tentative plan based on your estimate of the situation and an analysis of METT-T. d. Start necessary movement. Movement may need to begin while you are still planning or conducting reconnaissance. You may designate a senior subordinate to bring the platoon forward. This step could occur at any time during the troop-leading procedure. Based on distance to the defensive position and METT-T, plan for supporting fires along then route. e. Reconnoiter the defensive position and the route(s) to it. The leader's reconnaissance is conducted to confirm or deny those assumptions made during the estimate of the situation. Avoid detection by the enemy and allow only essential personnel to participate. |
||
(1) Check for enemy positions, or signs of past enemy
activities, obstacles, booby traps, and NBC
contamination. (2) Confirm or adjust squad positions and sectors of fire from those in the tentative plan. Revise the plan as necessary based on an assessment of METT-T. |
||
f.
Complete the plan. Based on the leader's reconnaissance
and any other additional information, finalize the plan.
Coordinate for the mission. g. Issue the order to subordinate leaders. Use the standard OPORD format to communicate your plan. The plan must include: |
||
(1) The platoon mission. (2) Each squads sector of defense and its position (left/right/center) in the platoon defense. (3) The deployment of key weapons, mines, and obstacles. (4) The use of fire support. (5) Fire control measures, if different from unit tactical Standing Operating Procedure (SOP). (6) Priority of work. (7) Type of positions to be prepared. (8) Security plan ( passwords/observation post (OP)/percent of personnel on alert). (9) Medical evacuation/treatment of wounded plan. (10) Time the platoon must be ready to defend. (11) Location of platoon command post (CP). (12) Other pertinent information such as re-supply, waste disposal, environmental hazards |
||
h.
Supervise continuously. (1) conduct brief backs with subordinate leaders to ensure they are knowledgeable of the defense plan. (2) Ensure that leaders supervise, inspect, rehearse if necessary, and make required coordination. (3) Have the platoon sergeant coordinate for any special equipment (barbed wire, mines, etc.), rations, water, ammunition, and other supplies to support the mission. |
||
2 |
Conduct movement to the defensive position. | GO / NO GO |
a.
Move on covered and concealed routes. b. Avoid likely ambush sites. c. Enforce camouflage, noise, and light discipline. d. Maintain all-around security. e. Direct platoon formations and movement techniques based on METT-T |
||
3 |
Establish the defensive position | GO / NO GO |
a.
Halt the platoon short of the defensive position in a
covered and concealed position and establish local
security. b. If time and distance did not allow you to conduct a leaders reconnaissance, conduct it at this time. See step 1. e. c. Implement security plan that will provide continuous security. Establish observation post(s) (OP), have early warning devices em-placed, and implement work/security plan. |
||
(1) Ensure the OP's have a prepared fighting position to
return to and knows the route back to the position and
the running password. (2) Ensure all platoon members know the OP(s) location, running password and the route OP members will take to return to their fighting positions. |
||
d.
Position squads, key weapons, and any attachments. Ensure
range cards are prepared as required. e. Assign alternate and supplementary positions, sectors of fire, engagement priorities, and fire control measures. f. Choose the platoon command post (CP) location and establish communications with higher and lower units. g. Ensure mines and wire are em-placed according to obstacle plan. h. Confirm all positions (before digging begins). Check positions and preparations constantly. i. Develop final fire support plan (assisted by the forward observer (FO), make a sector sketch and send a copy to the company commander. j. Enforce work priority. k. Brief the platoon sergeant on the logistics plan (include re-supply and casualty evacuation routes). l. Reconnoiter routes to and from alternate and supplementary positions. Plan for and conduct rehearsals of movement to and between primary, alternate, and supplementary positions. m. Issue a finalized order to subordinates and check soldier knowledge and understanding . All soldiers must be aware of friendly units forward of the position (OP's, patrols, scouts) and their return routes. They must also know the signals or conditions to initiate, shift, fire final protective fire, cease fire, and to reposition to alternate and supplementary positions. n. Supervise continuously. Ensure establishment of the defensive position is completed in the time required and reported to the company commander. |
||
4 |
Conduct the defense in assigned sector | GO / NO GO |
a.
Locate the enemy in your sector by ensuring OP's are
maintained, patrols are conducted as directed by the
company commander, early warning devices are monitored,
individual solders are alert. b. Perform the following action once the enemy is detected; (1) Alert the squad leaders, platoon sergeant, and FO. (2) Report the situation to the company commander. (3) Call in OP's. (You must decide whether to leave the OP's in place. If the soldiers manning them can provide effective flanking fire, their positions afford them adequate protection, and or their return will comprise the platoon position.) (4) Direct the FO to call for and adjust indirect fire IAW the platoon defense plan. (5) Direct the initiation of long-range direct fires in accordance with the platoon defense plan or on order from the company commander. c. Supervise fighting the defense. You must determine if the platoon can destroy the enemy from its assigned positions. |
||
(1) If the answer is YES, continue to fight the defense.
(a) Have the FO to continue to call for and adjust fire as the enemy approaches. (b) Control the platoon's fires to disrupt enemy formations, channel him toward engagement areas, and destroy him as he attempts to breach tactical obstacles. (c) Initiate final protective fires when the enemy closes on the platoon's protective wire. (d) continue to direct the defense until the enemy is repelled, or the platoon is ordered to disengage |
||
(2) If the answer is NO: (a) Report the situation to the company commander. (b) Continue to engage the enemy or reposition the platoon (or squads of the platoon) only when directed by the company commander to: -Continue fires into the platoon sector (engagement area). -Occupy supplementary positions. -Reinforce other pats of the company. -Counterattack locally to retake lost fighting positions. -Withdraw from an untenable position using fire and movement. |
||
5 |
Consolidate and reorganize. | GO / NO GO |
a.
Reestablish security. Check on and re-establish OP's as
required. As soon as feasible reestablish the sleep/alert
system. b. Reestablish the platoon chain of command. c. Ensure key weapons are manned and key personnel are replaced. d. Ensure casualties are treated/evacuated as required. e. Receive situation reports from subordinates. Report your situation to the company commander. f. Ensure ammunition and supplies are redistributed. g. Reestablish communications. h. Recheck sectors of fire and adjust positions to maintain mutual support. i. Ensure damaged fighting positions are repaired, damaged or breached obstacles are repaired/replaced. j. Ensure the platoon continues to improve the defensive position. |
||
Score the soldier GO if all performance measures are passed. Score the soldier NO GO if any performance measure is failed. If the soldier scores NO GO, show the soldier what was done wrong and how to do it correctly. Allow the soldier time to retrain and retest. | ||
EVALUATOR'S NAME | UNIT: | |
SOLDIER'S NAME | STATUS:
GO / NO GO |
APPENDIX B
COMMON TASK TEST PERFORMANCE SHEET
B-1. General. The Common Task Test Performance Sheet in this appendix should be reproduced for each soldier to be evaluated on the CTT. Instructions for completion are on the back of the sheet. As explained in Sections III and V, the task scorer will transfer a soldier's GO/NO GO scores to this sheet.
B-2. Replacement tasks. If a replacement task is being substituted for a CTT task listed in the FY 99 CTT Notice, the TSM will do the following before reproducing the Common Task Test Performance Sheet:
a. Line through the number and title of the task being replaced.
b. Enter the task number and title of the replacement task over that of the task being replaced.
FY 99 COMMON TASK TEST PERFORMANCE SHEET
1 October 1998 - 30 September 1999
NAME: |
PAY GRADE: | ||||||||||
UIC |
DATE COMPLETED: | ||||||||||
CTT TSM: | |||||||||||
DATE | NO | SL | TASK NUMBER | TITLE | GO |
NO GO | |||||
1 | 1 | 031-503-1017 | Respond to Depleted Uranium/Low Level Radioactive Materials (DULLRAM) Hazards | ||||||||
2 | 1 | 031-503-1015 | Protect Yourself From NBC Injury / Contamination With the Appropriate Mission Oriented Protective Posture (MOPP) Gear | ||||||||
3 | 1 | 031-503-1013 | Decontaminate Yourself and Individual Equipment Using Chemical Decontamination Kits | ||||||||
4 | 1 | 031-503-1035 | Protect Yourself From Chemical and Biological Injury/ Contamination Using Your Assigned Protective Mask | ||||||||
5 | 1 | 071-311-2025 | Maintain an M16A1/M16A2 Rifle | ||||||||
6 | 1 | 071-329-1002 | Determine The Grid Coordinates of A Point On A Military Map | ||||||||
7 | 1 | 071-990-0002 | Operate An M16A1/M16A2 Rifle | ||||||||
8 | 1 | 081-831-1000 | Evaluate A Casualty | ||||||||
9 | 1 | 031-503-1036 | Maintain Your Assigned Protective Mask | ||||||||
10 | 1 | 071-329-1005 | Determine a Location On The Ground By Terrain Association | ||||||||
11 | 1 | 113-305-1001 | Communicate By a Tactical Radio | ||||||||
12 | 1 | 031-503-1019 | React to Chemical or Biological Hazard or Attack | ||||||||
13 | 2 | 071-326-5505 | Issue an Oral Operation Order | ||||||||
14 | 2 | 031-503-2001 | Identify Chemical Agents Using M256-series Chemical Agent Detector Kits | ||||||||
15 | 3 | 154-385-6263 | Conduct a Risk Assessment | ||||||||
16 | 3 | 551-88N-0002 | Prepare for Unit Movement | ||||||||
17 | 4 | 071-332-5000 | Prepare An Operation Overlay | ||||||||
18 | 4 | 071-430-0006 | Conduct A Defense By A Platoon |
ENCODING INSTRUCTIONS FOR THE COMMON TASK TEST
PERFORMANCE SHEET
NAME | ENTER THE SOLDIER'S NAME (LAST NAME, FIRST NAME, MIDDLE INITIAL). |
PAY GRADE | ENTER THE SOLDIER'S PAY GRADE AS OF THE DATE THE CTT WAS COMPLETED. |
UIC | ENTER THE UNIT IDENTIFICATION CODE (UIC). |
DATE | ENTER THE DATE THAT THE CTT WAS COMPLETED |
CTT TSM | ENTER THE NAME OF THE CTT TEST SITE MANAGER (TSM). |
FOR EACH TASK, ENTER DATE THE TASK WAS TESTED AND RECORD RESULTS BY CHECKING EITHER THE GO OR NO GO BLOCK ACCORDING TO THE INSTRUCTIONS BELOW.
CHECK THE GO BLOCK IF THE SOLDIER PASSED THE TASK:
CHECK THE NO GO BLOCK IF THE SOLDIER FAILED THE TASK:
CTT RESULTS ROLL-UP
UNIT: | AS OF: | ||||||
Task- Skill Level 1 |
E1 - E4 GO/NG |
E5 GO/NG |
E6 GO/NG |
E7 GO/NG |
Task Passed |
Total Number Tested |
Total Number Assigned |
CTT RESULTS ROLL-UP
UNIT: | AS OF: | ||||||||
Task- Skill Level 2 |
E5 GO / NO GO |
E6 GO / NO GO |
E7 GO / NO GO |
Task Passed |
Total Number Tested |
Total Number Assigned |
|||
CTT RESULTS ROLL-UP
UNIT: | AS OF: | ||||||||
Task- Skill Level 3 |
E6 GO / NO GO |
E7 GO / NO GO |
Task Passed |
Total Number Tested |
Total Number Assigned |
||||
CTT RESULTS ROLL-UP
UNIT: | AS OF: | ||||||
Task- Skill Level 4 |
E7 GO / NO GO |
Task Passed |
Total Number Tested |
Total Number Assigned |
|||
The proponent of this manual is the U.S. Army
Training Support Center. Send comments and recommendations on DA
Form 2028 (Recommended Changes to Publications and Blank Forms)
directly to Commander, U.S. Army Training Support Center, ATTN:
ATIC-DLC-D, Fort Eustis, VA 23604-5166.
| First Page | Prev Page | Next Page | Back to Text |
